Define Wall Settings
Define wall settings specifies CAD levels and element appearance for tools in the Wall toolbox when new elements are created with the tools.
To define wall settings:
1. Select the Define Wall Settings tool.

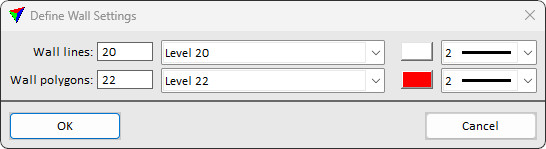

The Define Wall Settings dialog opens:
2. Define settings and click OK.
This writes settings to the TerraScan setting file.
SETTING |
EFFECT |
---|---|
Wall lines |
Level, color, and line weight for wall lines |
Wall polygons |
Level, color, and line weight for wall polygons |
