Modify numbering

Scroll Prev Top Next More

Modify numbering

Modify numbering command modifies the line number of points in a single or all lines. The modification can be done for all points or a selection of point classes. Additionally, points of the renumbered line(s) can be classified to another class at the same time.

To modify line numbering:

1. Select Modify numbering command from the Line pulldown menu.

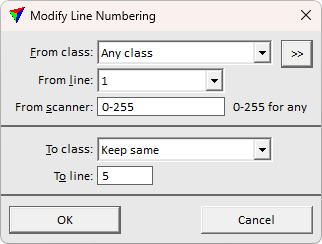

This opens the Modify Line Numbering dialog:

modify_line_numbering

2. Define settings and click OK.

This modifies the numbering for the laser points in the selected classes.

SETTING

EFFECT

From class

Point class(es) for which the new line number is assigned.

_select_classes

Opens the Select classes dialog which contains the list of active classes in TerraScan. You can select multiple source classes from the list that are then used in the From class field.

From line

Line number to be changed. This can be a specific line number between 0 and 65535, or Any line.

To class

Target class for laser points of the renumbered line(s). Select Keep same if you do not want to classify the points.

To line

New line number assigned to the points. This can be a specific line number between 0 and 65535.

The command can be used to classify points of a specific line into another class. If the line numbers are the same in the From line and To line fields, the line attribute of points is not effected.
