Create drone macro

Scroll Prev Top Next More

Create Drone Macro

Not Lite

Create Drone Macro command creates a macro respective to selected process steps. Available process steps are identical to steps provided in Process Drone Data tool.

To create a new macro from Process drone data steps:

1. Select Create Drone Macro command from the Wizard menu.

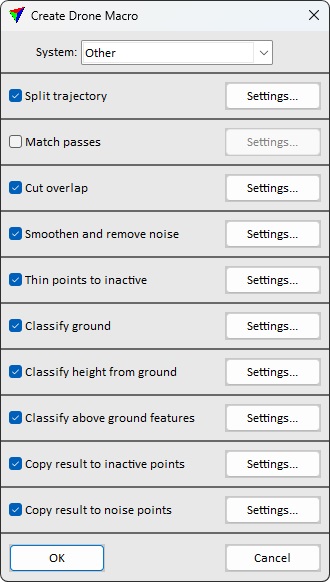

This opens the Create Drone Macro dialog:

create-drone-macro

2. Select system and processing steps, define settings and click OK.

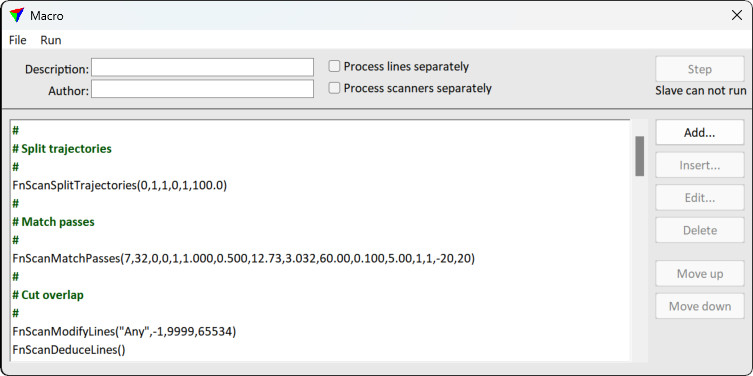

This opens the Macro dialog:

create-drone-macro-result

3. Edit, save, or use the result like a conventional macro described in Macros.
