Transform positions
Transform positions command applies an user-defined transformation to the display of attached raster references. The transformation must be defined in Coordinate transformations / Transformations of the TerraPhoto Settings.
To transform the display of reference images:
1. Select Transform positions command from the Edit pulldown menu.

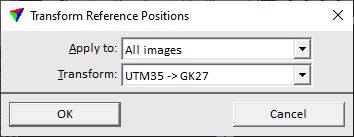

This opens the Transform Reference Positions dialog:
2. Select settings and click OK.
This transforms the reference images to the new position.
SETTING |
EFFECT |
|---|---|
Apply to |
Apply transformation to All images or Selected images. |
Transform |
Transformation to be applied. The transformation must be defined in Coordinate transformations / Transformations of the TerraPhoto Settings. |
Modify extent |
If on, a transformation can modify the pixel size of the images. Otherwise only the position is changed. |
To apply a transformation permanently for reference images, use Convert references command from the Utility pulldown menu.
